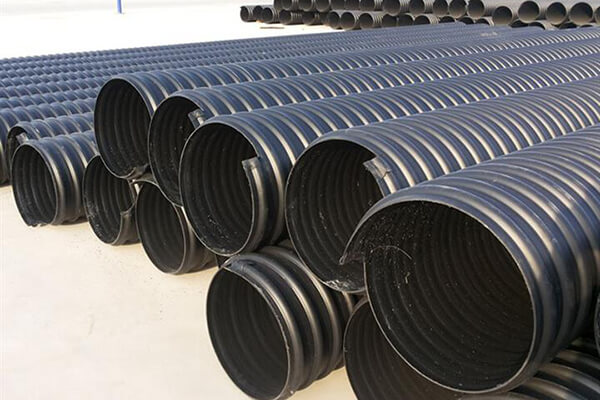

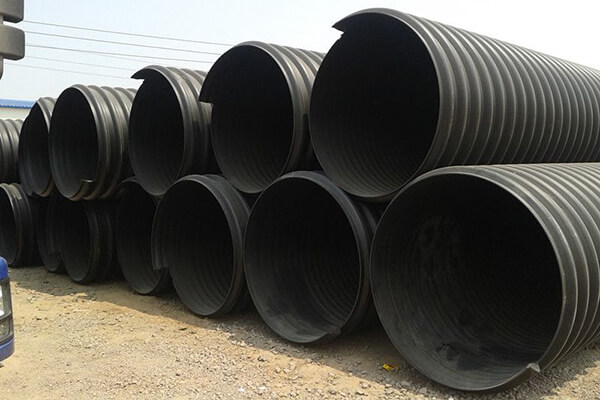

Corrugated Steel Belt Reinforced PE Pipe



Corrugated steel belt reinforced PE pipe for underground sewer adopts polyethylene as matrix materials for the external layer, a high performance adhesion resin coating along with bending formed steel corrugation as its main bracing structure. It gains its integrity by winding and extrusion moulding.

The product combines high stiffness, high strength and excellent plastic features such as corrosion resistance, wear resistance and flexibility. It not only reaches the ring stiffness of SN8, SN10, SN12 and SN16, but also solves the corrosion problem of steel. It compensates for the weakness that the ring stiffness of relatively large diameter full plastic underground drainage pipe has, which can only reach SN8.

The pipe system uses connection modes such as hot fusion welding, thermal contract pipe (belt) and electrofusion belt to meet different project requirements and operating conditions. The pipe has a wide application range and is the initial choice of product to replace conventional large diameter drainage pipe

PRODUCT FEATURES:

  • Strong corrosion resistance: The pipe is constructed from corrosion resistant PE material and will not be corroded by acid, alkali or oil in sewage and waste water.
  • Strong external impact resistance: This pipe is flexible and has superior performance recovering to its original shape under external impact.
  • Strong ageing resistance: because of its base material characteristics, the pipe has strong aging resistance and may be used effectively for over 50 years.
  • Light weight: the pipe weight is only 1/8 that of concrete pipe with the same specifications, and 2/3 that of conventional pipe with winding plastic structure, making it convenient for both transportation and construction without the need for large scale construction equipment.
  • Convenient connection: Various simple connection modes make installation quick, easy and convenient.
  • Simple & convenient construction with low cost: the pipe is light weight with convenient connection capabilities and undemanding excavation requirements which can reduce both time and costs for urban sewerage project construction.
  • Superior wear resistance: the pipe has a smooth interior and low friction coefficient, as well as strong medium conveying capacity.
  • Environmentally friendly: Polyethylene is non-toxic and renewable and does not contribute to environmental pollution.

SN RATING:

SN8 – SN16

SPECIFICATIONS:

DN300 – DN1800

APPLICATIONS:

Urban underground drainage and sewerage pipe

Drainage and sewerage pipe in plant and sewerage treatment plants

Ventilation system pipe

Pipe system for cable and optical cable sheath

Convey pipe for seawater and rainwater

Collecting system and soak-away system

Agricultural irrigation water pipe

Production of chemical process vessel
